Portable battery pack balance detector - est group-Becoming a leader in comprehensive service platforms for the global new energy battery industry

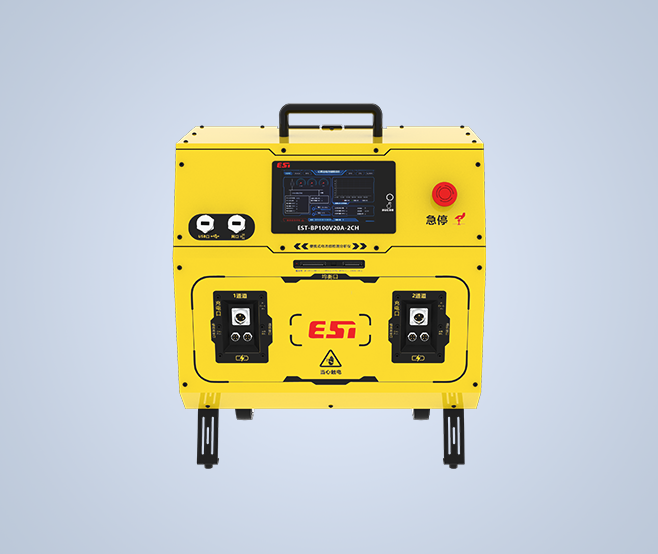

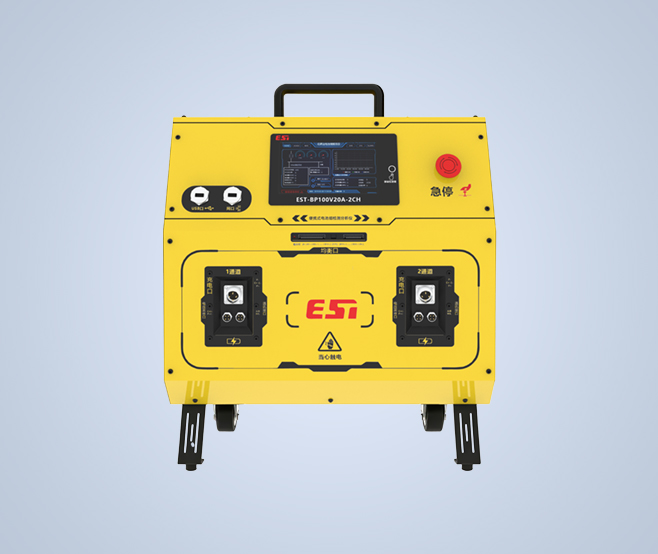

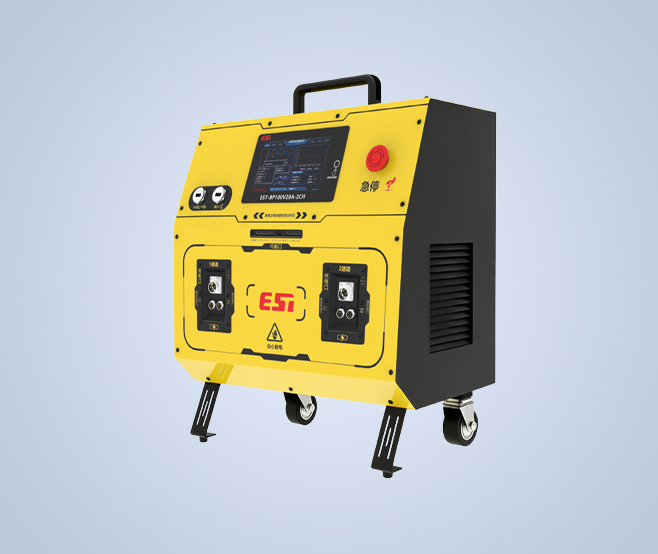

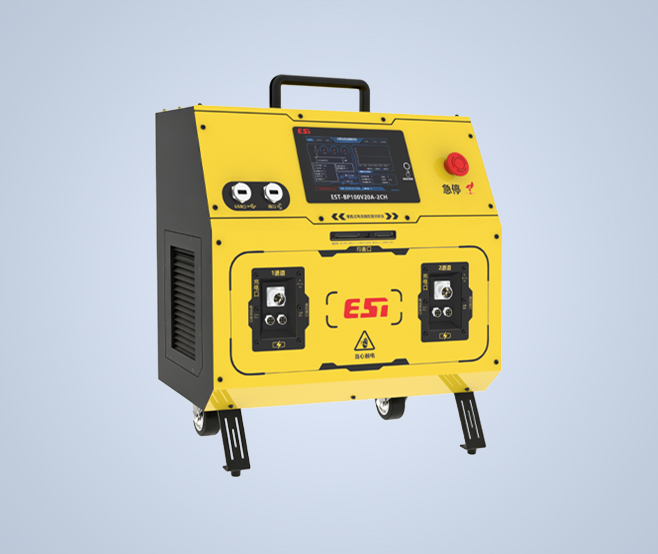

EST-BP100V20A-2CH

This device has many innovative highlights. It is compact in size, easy to carry, and can perform differential pressure balancing and performance testing on the battery pack anytime and anywhere, greatly improving flexibility and convenience. In terms of performance, the analyzer has high-precision detection capability, which can quickly and accurately detect various parameters of the battery pack, such as voltage, current, capacity, internal resistance, etc., providing strong data support for quality control of the battery pack. At the same time, its operation is simple and easy to understand, even non professionals can easily get started, greatly reducing the threshold for use.

Products Portable battery pack balance detector EST-BP100V20A-2CH

Overview

The Yishengda portable battery pack detector is developed to solve the problem of shortened battery pack cycle life caused by the expansion of the consistency deviation of individual cell voltages after lithium batteries are connected in series. The product adopts a high-precision AD chip design and uses a "series charging and filling" method to accurately recharge the lagging cells, ensuring that each string of cells is fully charged and maintaining consistency in the power difference between the individual cells in the group, thereby eliminating the short board effect of the battery pack and restoring the overall capacity of the battery pack to near the factory level. It has the advantages of strong portability, comprehensive functions, and accurate detection results, and is a capable assistant for battery production, operation, maintenance, and recycling practitioners.

Ultimate portability

500*310*560mm

highly integration

One device, multiple uses

One click testing

Built in multiple testing processes

touch screen controller

Full touch screen control throughout the process

Parameter

Equipment model EST-BP100V20A
Number of channels 02CH
input voltage AC220V ± 10PHz single-phase three wire
Power factor ≥99%
THDi ≤5%
Efficiency Best efficiency: 92%
sampling resolution AD:16bit
Input impedance ≥0.5Ω
Whole machine power 4KW
AC input protection Prevent tidal surges, islanding, over/under frequency, over/under voltage, etc
Balanced voltage range 1V～5V
Balanced voltage accuracy 3mV±
Active current balancing 4A
temperature collection Optional
Ternary lithium battery 2-24 strings
Lithium iron battery 2-24 strings
Lithium titanate battery 2-24 strings
Balanced starting voltage 3V
Single overcharge voltage TLB:4.2V LiFePO4:3.6V LTO:2.7V
Trigger equilibrium pressure difference 0.01V
Operating power consumption ≤1000mW
Output voltage range 5V～100V
Current range 20mA～20A
accuracy ±0.05%FS＋0.05%RD（25℃±5℃）
resolution 1mV 1mA
Charging and discharging current rise time 10%~90% ≤ 10ms @ single channel
Charge discharge conversion time -90%~90% ≤ 20ms @ single channel
Charge discharge mode Constant voltage, constant current, constant power, constant current and constant voltage, constant resistance, etc
Deadline jump conditions Voltage, current, relative time, capacity, temperature, charging capacity, etc. (some conditions only support client use)
Connection function Connect in case of pause, device restart, device failure, etc
cycle 1-65535 times, 125 steps, 3-layer nesting
Other functions Simulation synchronization of working conditions, pulse step, DCIR, etc. (only supported for client use)

Application

With the continuous expansion of the new energy electric vehicle market, the demand for battery pack testing equipment is also increasing. Traditional detection equipment has a large volume and high cost, which cannot meet the requirements of some users for portability and economy. After unremitting efforts, the R&D team of Yishengda has successfully launched this portable battery pack detection analyzer, filling the market gap.

Battery cascading utilization

Store inspection and maintenance

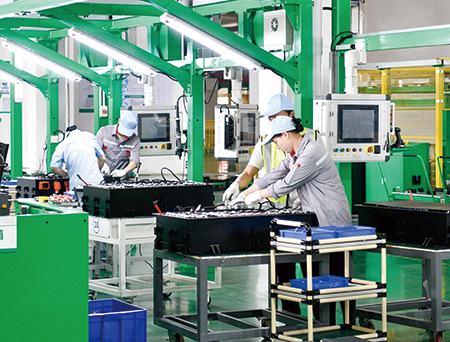

Battery production line testing
