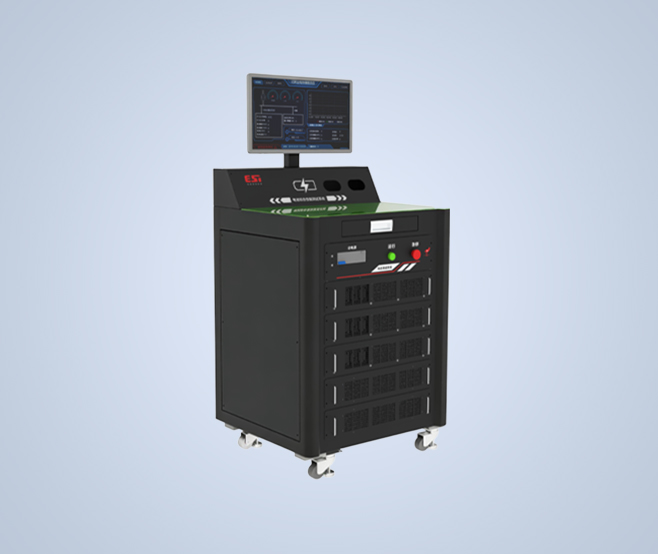

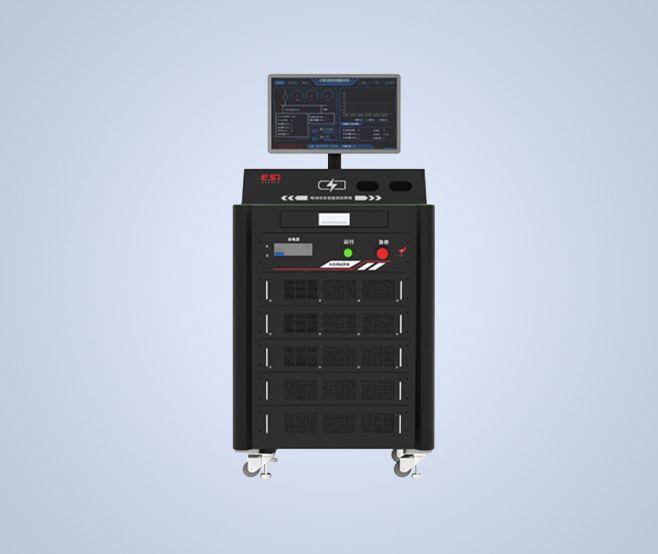

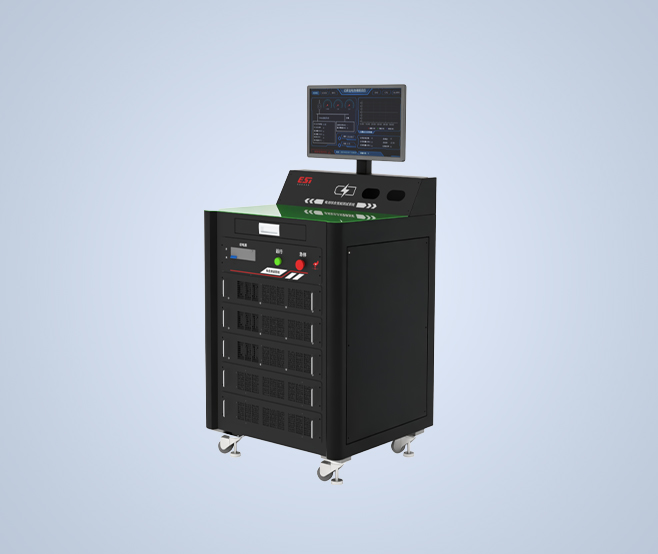

Equipment Overview
The comprehensive performance testing system for batteries can conduct comprehensive performance evaluations of various types of batteries, including capacity testing, cycle life testing, rate charging and discharging testing, high and low temperature performance testing, etc. The system is equipped with high-precision testing modules and advanced environmental simulation devices, which can accurately capture the performance change data of the battery under different testing conditions. At the same time, its powerful data processing and analysis capabilities can generate detailed test reports, providing strong data support for battery research and development, production optimization, and quality control, helping enterprises enhance the competitiveness of battery products.
  • testing voltage 100V/200V
  • Charging current 30A/50A/100A/200A
  • Discharge Current 100A/200A/300A
  • Maximum current for charging overcurrent 30A/50A/100A/150A
  • Accuracy of charging overcurrent test ±2A
  • Maximum current of discharge overcurrent 60A/200A/300A
  • Charging/Discharge current accuracy ±0.5% of F.S+0.5% of F.D
  • Accuracy of discharge overcurrent test ±2A
  • Voltage accuracy ±0.5% of F.S+0.5% of F.D
  • Voltage resolution 1mV
  • current resolution 1mA
  • Range of internal resistance for communication 1-3000mΩ
  • Accuracy of internal resistance communication 1mΩ
  • Range of DC internal resistance 1-3000mΩ
  • DC internal resistance accuracy 1mΩ
  • Accuracy of resistance pressure difference test 1mV
  • Short circuit protection time 1-10000us
  • power-off protection Automatically disconnect the electrical connection between the battery and the device after an unexpected power outage in the communication input
  • Emergency stop function Pressing the emergency stop button will disconnect the electrical connection between the battery and the device, and turn off the load power of the device
  • data save mode Save data in CSV file format
  • Voltage and current detection sampling Four wire connection
  • INPUT VOLTAGE AC220V 50HZ+10%、AC380V 50HZ+10%
